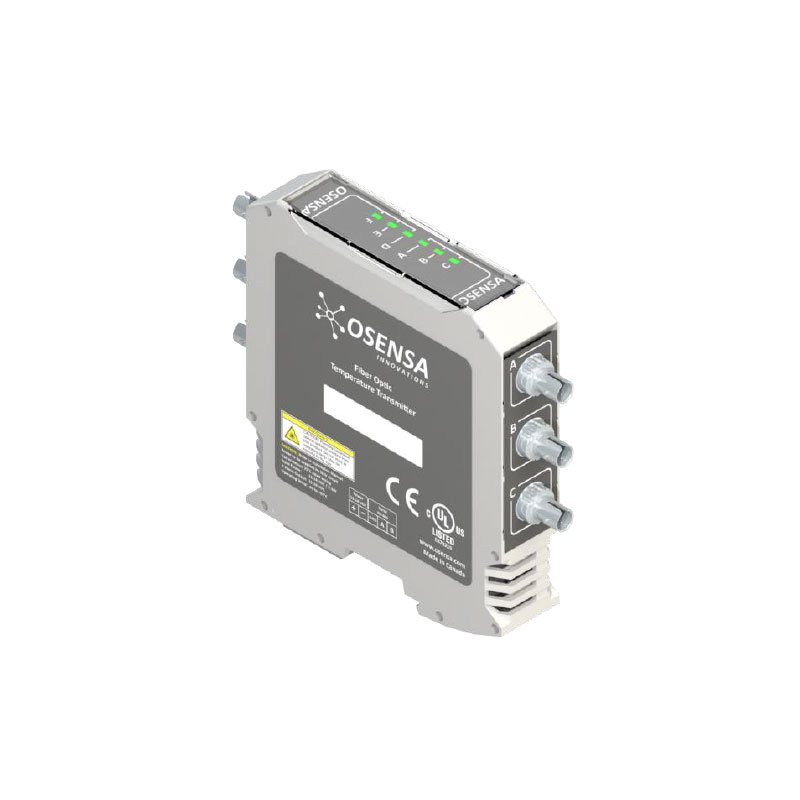

FTX-602/302-PWR+ Temperature Transmitter
Reliable Fiber Optic Thermal Monitoring Osensa’s PWR+ series fiber optic temperature transmitter offers scalable industry leading performance.
Each signal conditioner accepts either three or six optical fiber sensor inputs for convenient three-phase monitoring of hot spots in generator and transformer windings,
on bus bars in switch gear, or critical connection points on transmission cables and circuit breakers.
The FTX-602-PWR+ and FTX-302-PWR+ are powered by 12~24VDC and include isolated RS-485 serial connectivity over industry standard Modbus RTU protocol.
Multiple transmitters can be connected in series on a standard 35mm DIN rail with power and RS-485 communication supplied by the five-pin T-Bus connector.
